160′ x 40′ Deck Accommodation Barge

CD-16040

Length: 160’-0” (48.8 m)
Breadth: 39-5” (12.0 m)
Depth: 11’-6” (3.5 m)
Draft: 5’-11”(1.8 m)
Generator Power: 660 KW
Class: ABS A-1 Accom. Barge

---

Fuel Capacity: 9,844 gal (37 m3)
Fresh Water: 9,948 gal (38 m3)
Single Staterooms: 6
Double Staterooms: 13
Quad Staterooms: 7
Total Berths: 60

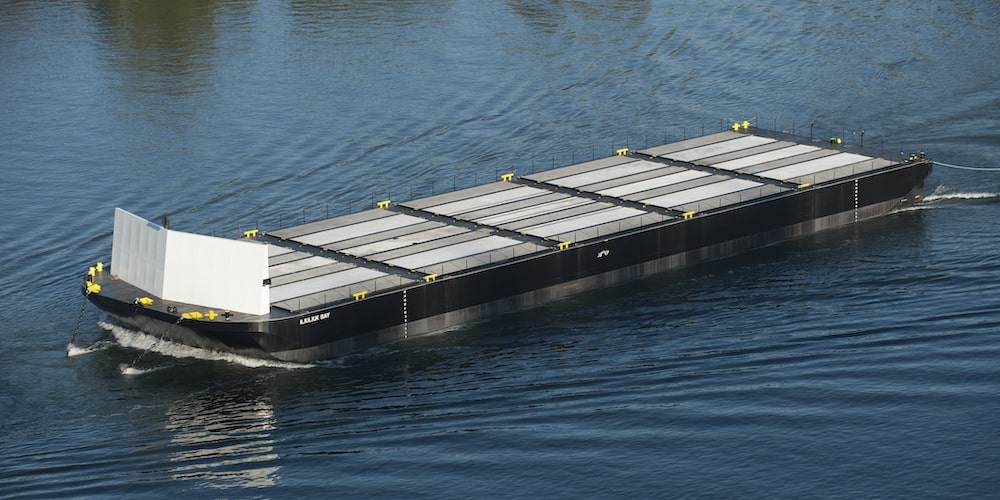

180′ x 54′ Deck Cargo Barge

CD-18054

Length: 180’-0” (54.9 m)
Breadth: 54’-0” (16.5 m)
Depth: 12’-6” (3.8 m)
Draft: 10’-0” (3.1 m)
Deck Rating: 2500 lbs/ft2 (12.2 MT/m)
Class: ABS A1 Barge

---

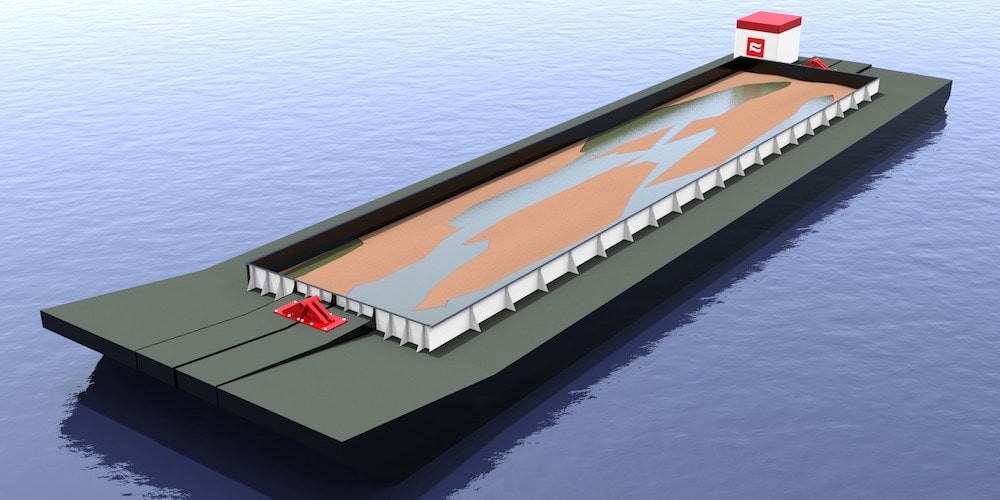

184′ x 48′ Hopper Barge

CB-18448

Length: 183′-9″
Length on Waterline: 179′-7″
Molded Breadth at Deck: 48′
Molded Depth to Deck: 12′-7″
Fuel: 490 gal
Hydraulic Oil: 500 gal

---

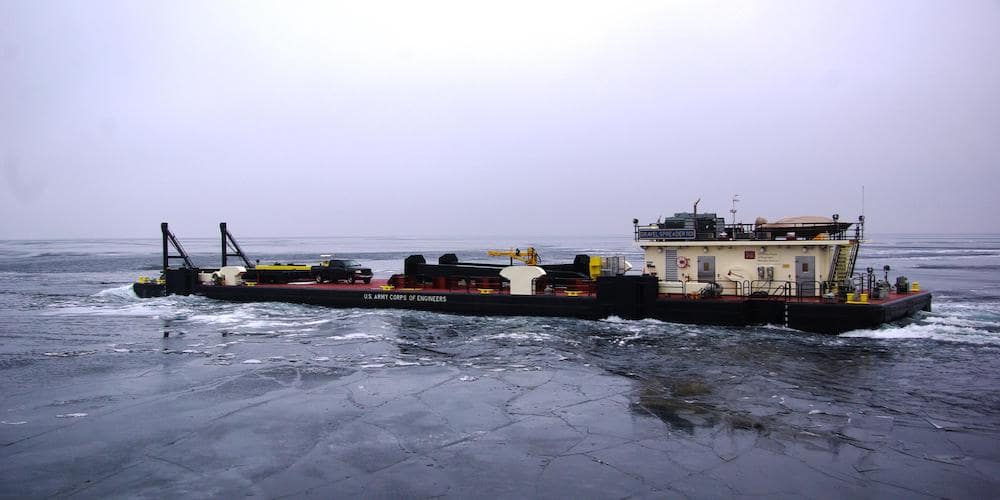

200′ x 40′ Revetment Crane Barge

CP-20040

Length: 200′-0″ (61.0m)
Breadth: 40′-0″ (12.2m)
Depth: 8′-0″ (2.4m)
Design Draft: 4′-0″ (1.2m)
Deck Capacity: 2000lbs/ft2
(9.8 MT/m2)

---

Generator Power: 350 KW
Fuel: 34,000 gal (129 m3)
Fresh Water: 22,000 gal (83 m3)
Ballast: 50,000 gal (189 m3)
Gross Tonnage: None (public vessel)

200′ x 50′ Revetment Snag Barge

CP-20050

Length: 200’-0” (61.0m m)
Breadth: 50’-0” (15.2 m)
Depth: 9’-0” (2.7 m)
Draft (Light): 3’-0” (0.9 m)
Draft (Heavy): 5’-9” (1.8m)

---

Fuel: 40,400 gal (153 m3)
Fresh Water: 18,500 gal (70 m3)
Ballast: 76,100 gal (288 m3)
Gross Tonnage: None (public vessel)

250′ x 70′ Deck Cargo/Crane Barge

CD-25070

Length: 250’-0” (76.2 m)
Breadth: 70’-0” (21.3 m)
Depth: 15’-8” (4.8 m)
Draft: 13’-0” (4.0 m)
Deck Load: 4000 lbs/ft2 (19.5 MT/m2)
Gross Tonnage: 2003 GT ITC
Class Load: line only

---

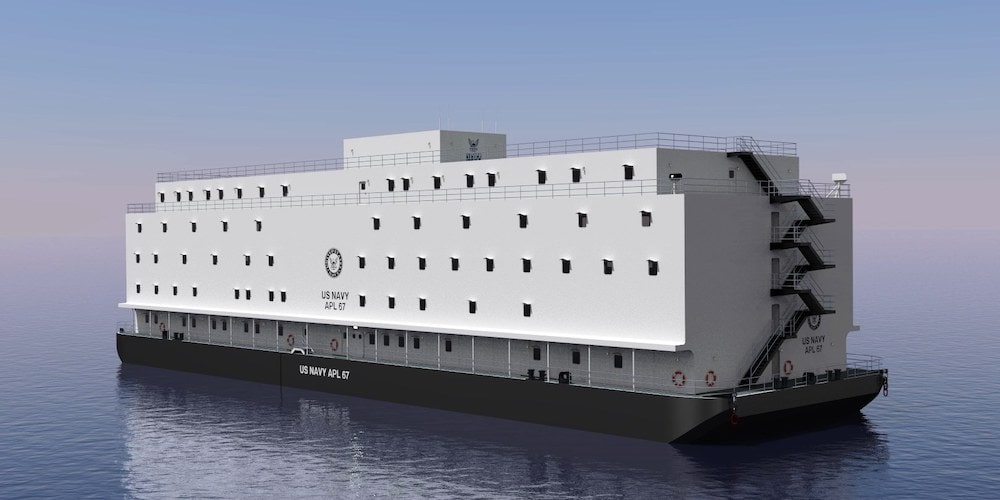

250′ x 68′ Accommodation Barge

CP-25068

Length: 250’-0” (76.2 m)
Breadth: 68’-0” (20.7m)
Depth: 16’-0” (4.9m)
Draft: 7’-10” (2.4 m)

---

Berths–Live Aboard: 600
Mess (per sitting): 240
Classrooms: 300 seats in 8 classrooms
Classification:` ABS A1 Accom. Barge

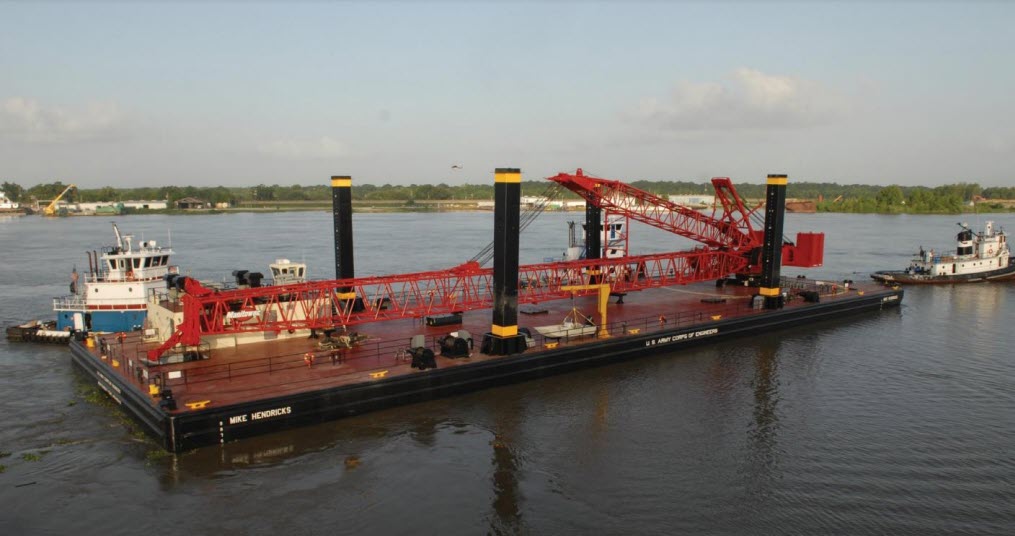

260′ x 84′ Spud Crane Barge

CP-26084

Length : 260’-0” (79.2 m)
Breadth: 84’-0” (25.6 m)
Depth: 12’0” (3.7 m)
Draft Range in FW: 3’-1” to 8’-6” (0.9-2.6 m)
Crane: Manitowoc 18000
Crane Capacity: 238 Short Tons (216 MT)

---

Generator Power: 2 x 340 KW
Fuel: 42,397 gal (160 m3)
Fresh Water: 4,952 gal (19 m3)
Ballast: 531,217 gal (2011 m3)
Gross Tonnage: None (public vessel)
Class: ABS Class A1

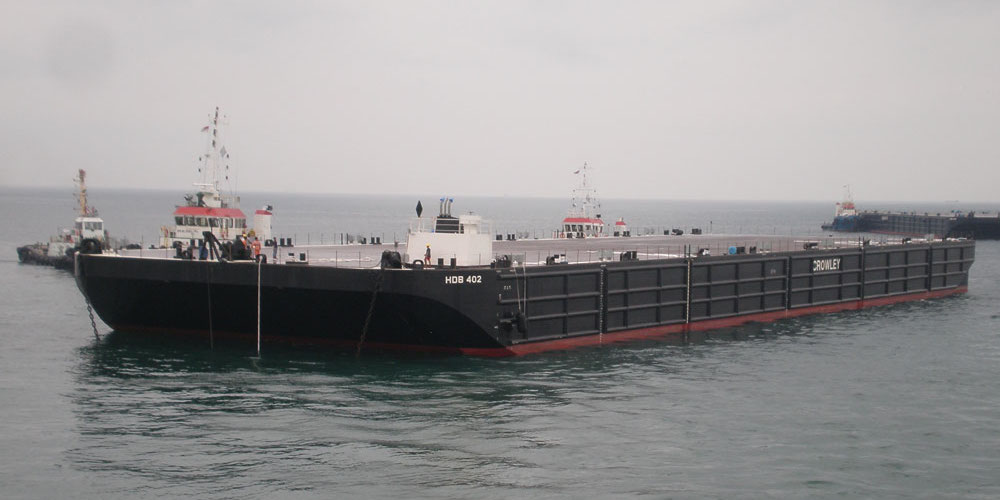

400′ x 120′ Heavy Deck Barge

CP-400120

Length: 400’-3” (122.0 m)
Breadth: 119’-9” (36.5 m)
Depth: 24’-11” (7.6 m)
Draft (loaded): 19’-2” (5.84m)
Deck Capacity: 5100 lbs/ft2
(25.0 MT/m2)

---

Ballast: 7,334,200 gal (27,763 m3)
Fuel: 2,300 gal (8.8 m3)
Gross Tonnage: 9211 (ITC)
Class: ABS A1, Barge
Load Line: ABS
