59′ x 24′ Fishing Vessel

FLL-05924

Length: 59’-5” (18.1 m)
Breadth: molded: 24’-0” (7.32 m)
Depth: 12’-3” (3.73 m)
Register tonnage: 192 gross tons

---

Main engine: 500 HP, Lugger L-6140A
Alaska Diesel Electric
Fish hold volume: 3069 cu feet (86.9 cu m)
Fuel oil: 9588 gal
Lube oil: 159 gal
Hydraulic oil: 333 gal
Fresh water: 1893 gal

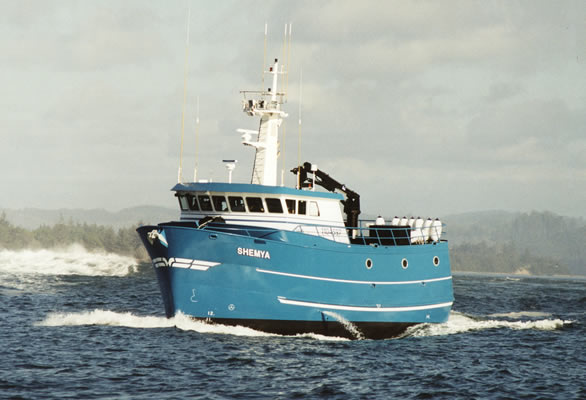

59′ x 29′ Fishing Vessel

FLL-05929

Length: 59’-5” (18.1m)
Breadth: 28’-6” (8.7 m)
Depth: 14’-0” (4.3 m)
Propulsion: Single Screw, Fixed Pitch
Propulsion Power: 615 HP (459 KW)

---

Hold Capacity: 4,240 ft3 (120.0 m3)
Fuel Capacity: 13,439 gal (50.9 m3)
Fresh Water: 2,319 gal (8.8 m3)
Berths: 10
Gross Tonnage: 174 ITC

124′ x 40′ Longliner

FLL-12440

Length: 124’-0” (37.8 m)
Breadth: 40’-0” (12.2 m)
Depth: 16’-6” (5.0 m)
Gross Tonnage: US Reg <200 GRT
Berth: 21 crew

---

Hydraulic Oil: 1,800 gal
Fuel Oil: 50,000 gal
Lube Oil: 800 gal
Fresh Water: 16,000 gal
Fish Hold Capacity: 15,000 cu ft

136′ x 40′ Longliner

FLL-13640

Length: 136’-0” (41.5 m)
Breadth: 40’-0” (12.2 m)
Depth: 17’-6” (5.3 m)
Propulsion: Twin Screw Diesel, Fixed Pitch
Propulsion Power: 2000 HP (1491 KW)

---

Hold Volume: 17,098 ft3 (484.2 m3)
Fuel Capacity: 85,532 gal (323.8 m3)
Fresh Water: 11,920 gal (45.1 m3)
Berths: 23
Gross Tonnage: 196 US (967 ITC)

150′ x 34′ Longliner

FLL-15034

Length Overall: 149’-6”
Length on Waterline: 139’-6”
Molded Breadth at Deck: 34’-0”
Molded Depth to Deck: 16’-0”
Draft to DWL (from baseline): 12’-0”

---

Fuel Capacity: (approx @ 98%) 76,190 gal
Fresh Water Capacity: (approx @ 100%) 7,042 gal
Cargo Hold Volume: (approx) 20,000 cu ft
Shaft Horsepower: 2 x 805 hp @ 1300 RPM
Accommodations: 24

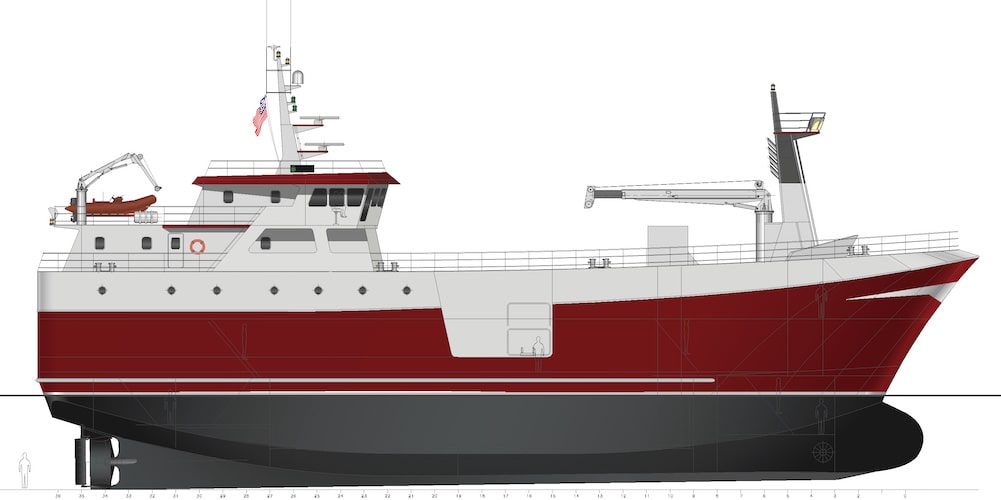

160′ x 40′ Longliner

FLL-16040

Length: 160’-0” (48.7m)
Beam: 40’-0” (12.2m)
Depth to Main Deck: 16’-6” (5.0m)
Main Engine: 2000 BHP
Fuel Oil: approx 65,000 Gal
Fresh Water: approx 10,000 Gal
Cargo Hold (frozen): approx 22,000 cu. Ft

---

167′ x 34′ Fishing Vessel

FLL-16734

COMING SOON

Length:
Breadth:
Draft:
Liquified Natural Gas Capacity:
Class:

---

184′ x 42′ Longliner Processor

FLL-18442

Length: 184’-3” (56.2 m)
Breadth: 42’-0” (12.8 m)
Depth: 18’-7½” (5.7 m)
Draft: 18’-10” (5.7 m)
Propulsion: Twin Screw Diesel-Electric, ASD
Propulsion Power: 4,405 HP (3285 KW)

---

Hold Volume: 38,291 ft3 (1084 m3)
Fuel Capacity: 146,068 gal (553 m3)
Fresh Water: 22,250 gal (84.2 m3)
Berths: 31
Gross Tonnage: 1409 US (1712 ITC)
ABS Class: A1, Fishing Vessel, AMS

376′ x 72′ Factory Trawler

FTF-11522M

Length: 114.6 m (376’-0”)
Breadth: 22.0 m (72’-2”)
Depth: 9.3 m (30’-6”)
Draft: 8.0 m (26’-3”)
Propulsion: Single Screw, Controllable Pitch
Propulsion Power: 7,200 KW (9655 HP)

---

Freezer Hold: 4,000 m3 (141,300 ft3)
Fuel Capacity: 600 m3 (158,500 gal)
Fresh Water: 115 m3 (30,400 gal)
Berths: 156

140′ x 36′ Fishing Trawler

FTF-14036

Length Overall: 139’-10.5”
Length on Waterline: 125’-0”
Molded Breadth at Deck: 36’-0”
Molded Depth to Deck: 15’-8.5”
Draft to DWL (from baseline): 19’-9.5”

---

Fuel Capacity: (approx @ 98%) 69,418 gal
Fresh Water Capacity: (approx @ 100%) 7,810 gal
Cargo Hold Volume: (approx) 17,439 ft3
Shaft Horsepower: 1800 hp
Accommodations: 38

201′ x 44′ Fishing Trawler

FTF-20144

Length Overall: 201’-4”
Breadth: 44’-0”
Depth: 18’-0” & 26”-10”
Propulsion Power: 3300 HP
Gross Tonnage: Approx. 1200 GT
Frozen Cargo Hold: 28,000 cu. ft.
Fuel Capacity: 136,700 gal
Fresh Water Capacity: 8,000 gal

---

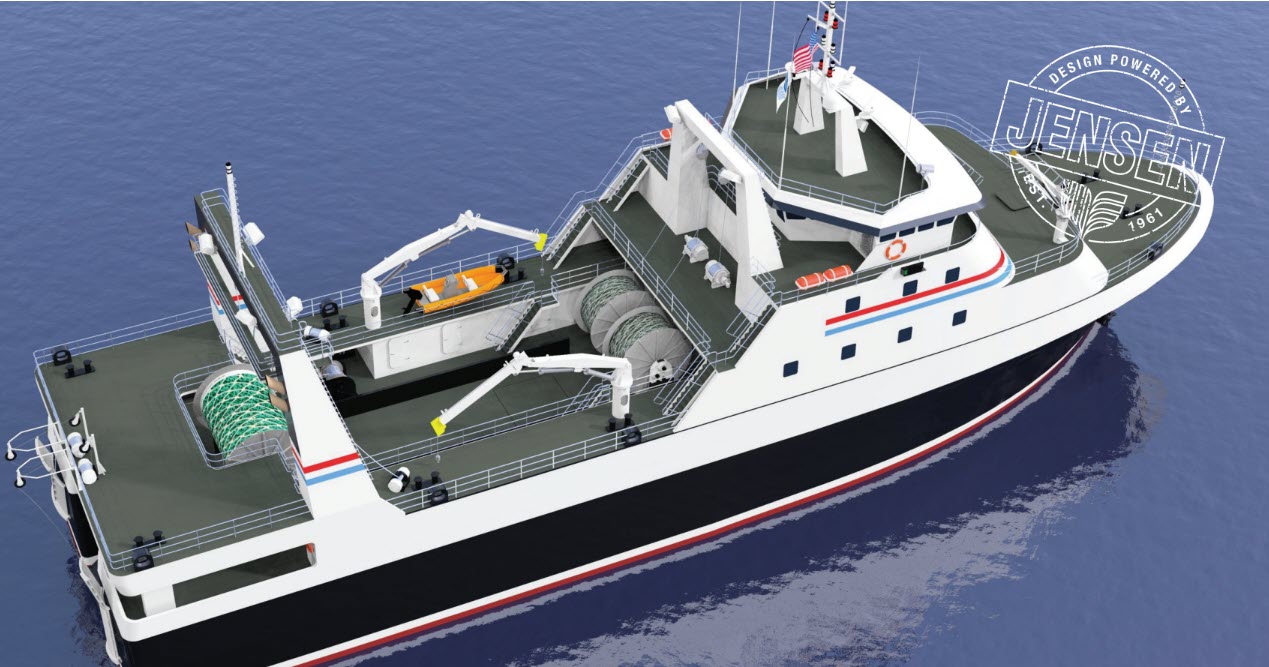

210′ x 60′ Fishing Trawler

FTF-21060

Length Overall: 210’-2” (64.1 m)
Breadth: 60’-0” (18.3 m)
Depth: 25′-8” (7.8 m)
Propulsion Power: 5000 HP (3728 KW)
Hold Capacity 75,000 ft³ (2,124 m3)
Fuel Capacity: 150,000 gal (568 m3)
Fresh Water Capacity: 2,500 gal (47.3 m3)

---

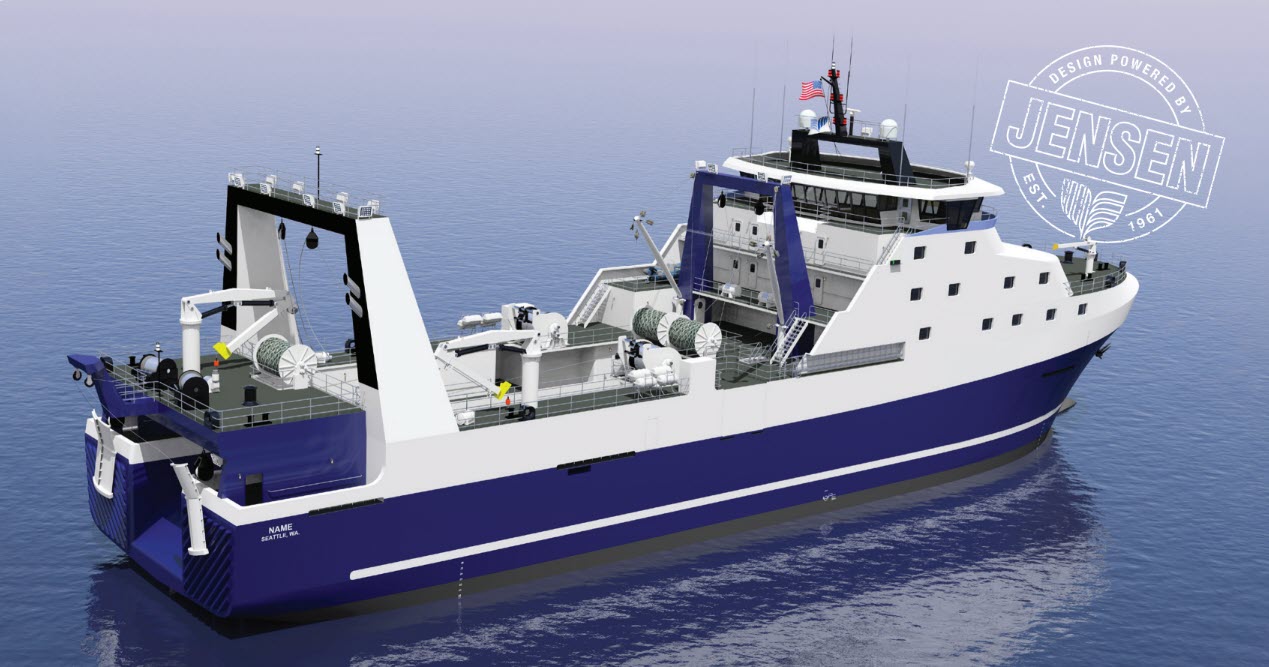

258′ x 60′ Fishing Trawler

FTF-25860

Length Overall: 258’-0”
Beam: 60’-0”
Depth: 25′-9”
Propulsion Power: 5000 HP (3728 KW)
Hold Capacity 99,682 ft³

---

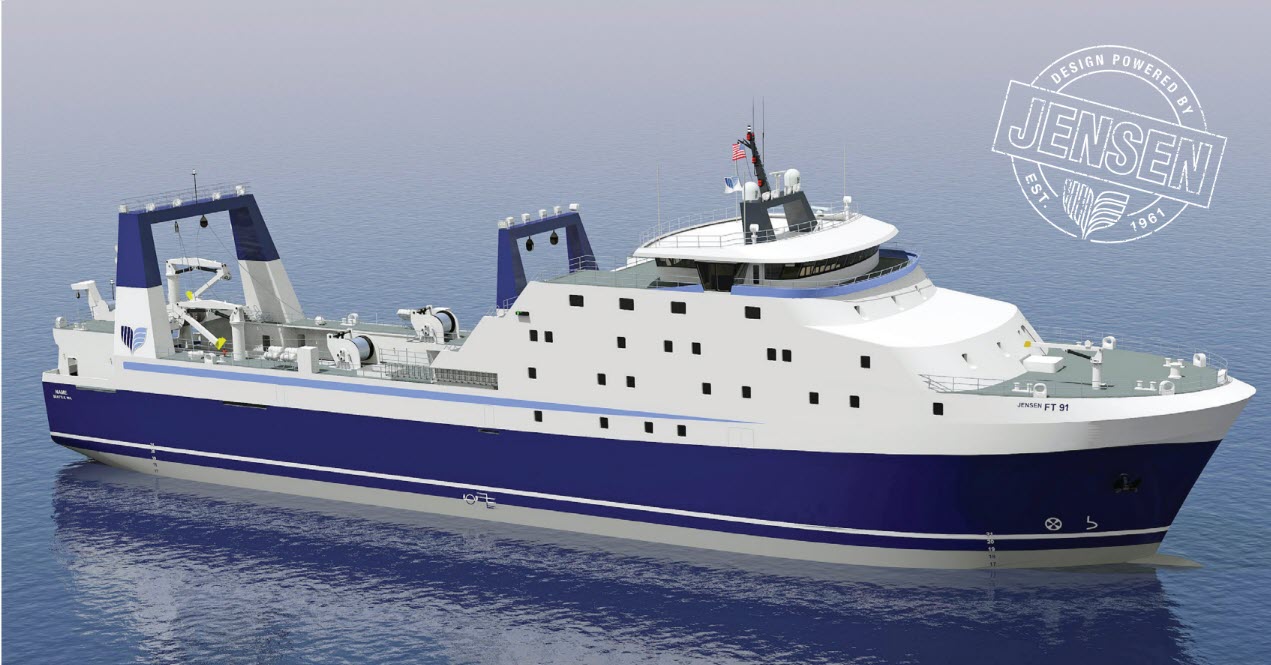

299′ x 64′ Fishing Trawler

FTF-29964

Length 299’-2”
Beam 64’-0”
Depth 29’-6”

---

Hold Capacity 150,425 cu ft
(Freezer and fishmeal holds)
Factory Yes
Berths 152

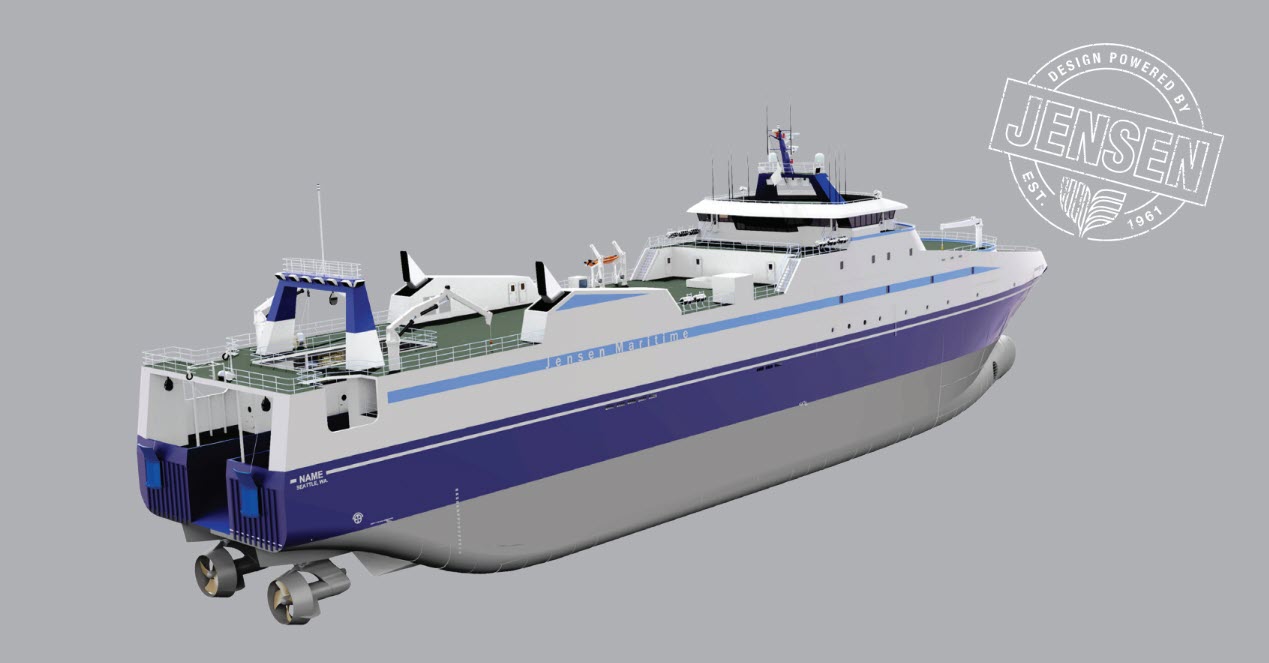

352′ x 60′ Fishing Trawler

FTF-35260

Length 352’-0”
Beam 60’-0”
Depth 24’-0”

---

Hold Capacity 109,300 cu ft
(Freezer and fishmeal holds)
Factory Yes
Berths 155

113′ x 40′ RSW Trawler

FTR-11340

Length: 112’-10” (34.4 m)
Breadth: 40’-0” (12.2 m)
Depth: 18’-0” (5.5 m)
Propulsion: Twin Screw, Fixed Pitch
Propulsion Power: 3,000 HP (2,237 KW)

---

Hold Capacity: 20,012 ft3 (567 m3)
Fuel Capacity: 51,437 gal (195 m3)
Fresh Water: 7,486 gal (28.3 m3)
Berths: 9
Gross Tonnage: 476 US, 532 ITC

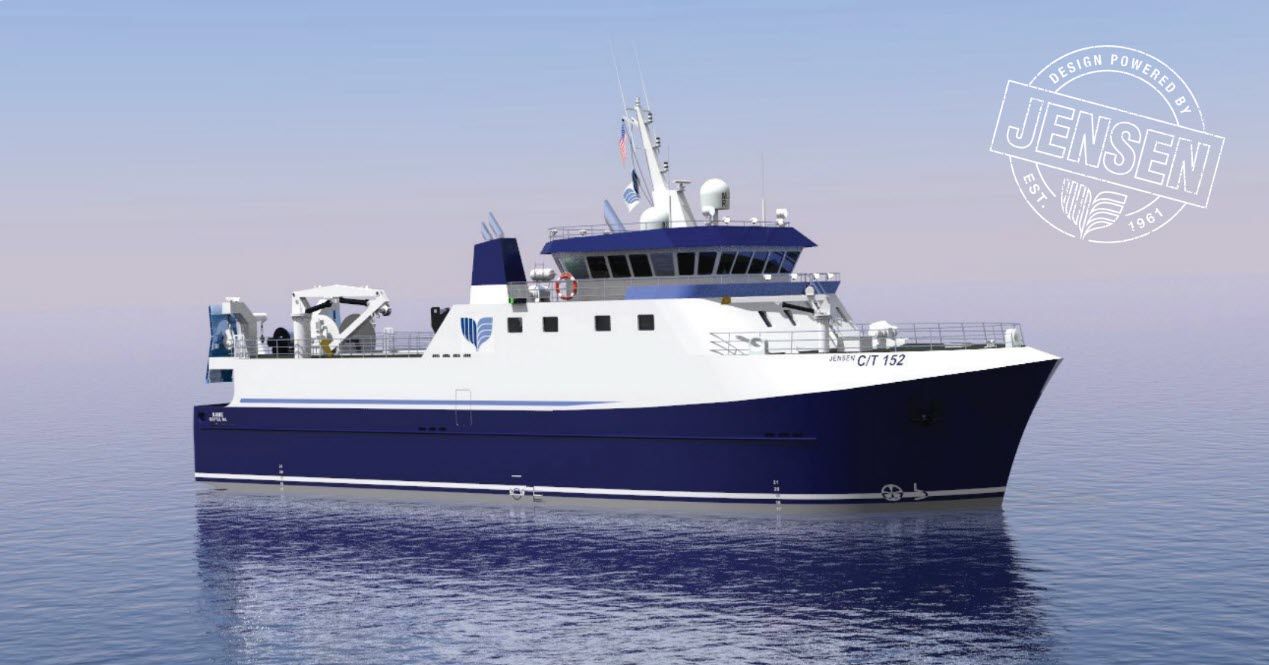

157′ x 44′ RSW Trawler

FTR-15744

Length, Overall 156’-7” (47.7m)
Breadth 44’-0” (13.4m)
Depth 28’-0” (8.5m)
Propulsion Single Screw, Fixed Pitch,
4,200-4,400 HP

---

Hold Capacity 14,600 ft³ (413 m³)
Fuel Capacity 158,500 gal (600 m³)
Fresh Water 7,100 gal (26.9 m³)
Berths 9
Class ABS A1 Stern Trawler, Ice

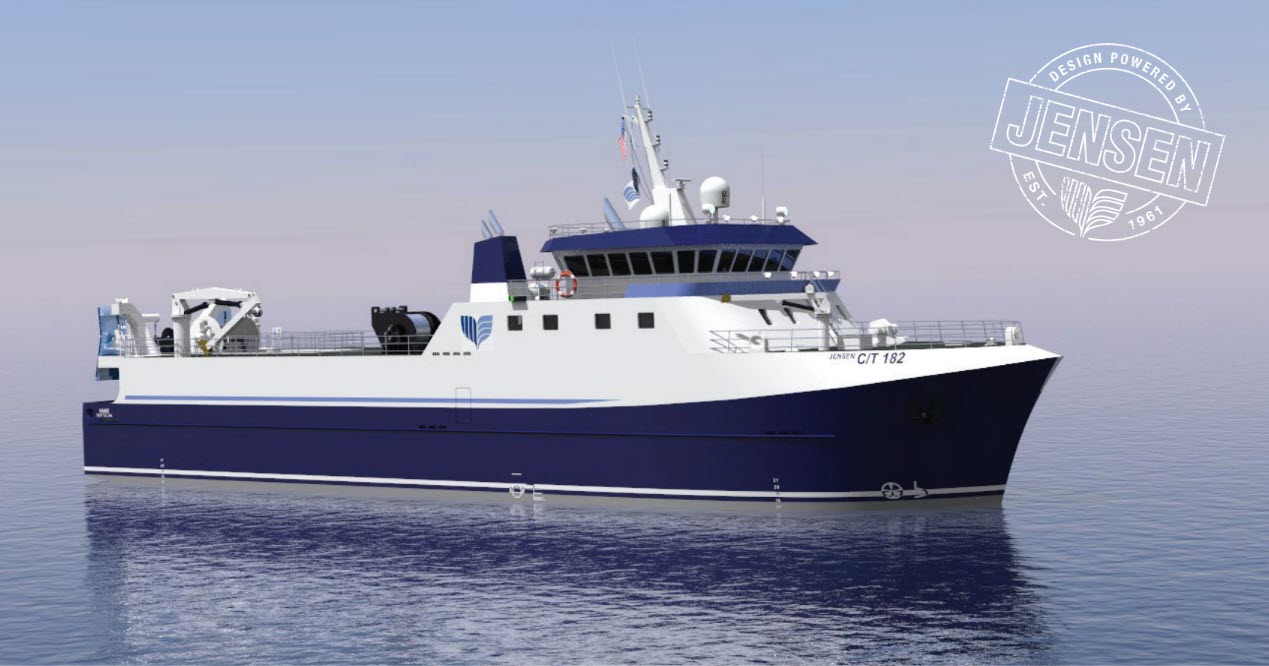

188′ x 48′ RSW Trawler

FTR-18848

Length, Overall 188’-0” (57.3 m)
Breadth 48’-0” (14.6 m)
Depth 28’-0” (8.5 m)
Propulsion Single Screw, Fixed Pitch,
4,200-4,400 HP

---

Hold Capacity 42,600 ft3 (1,206 m³)
Fuel Capacity 154,300 gal (584 m³)
Fresh Water 10,600 gal (40.1 m³)
Berths 16
Class ABS A1 Stern Trawler, Ice

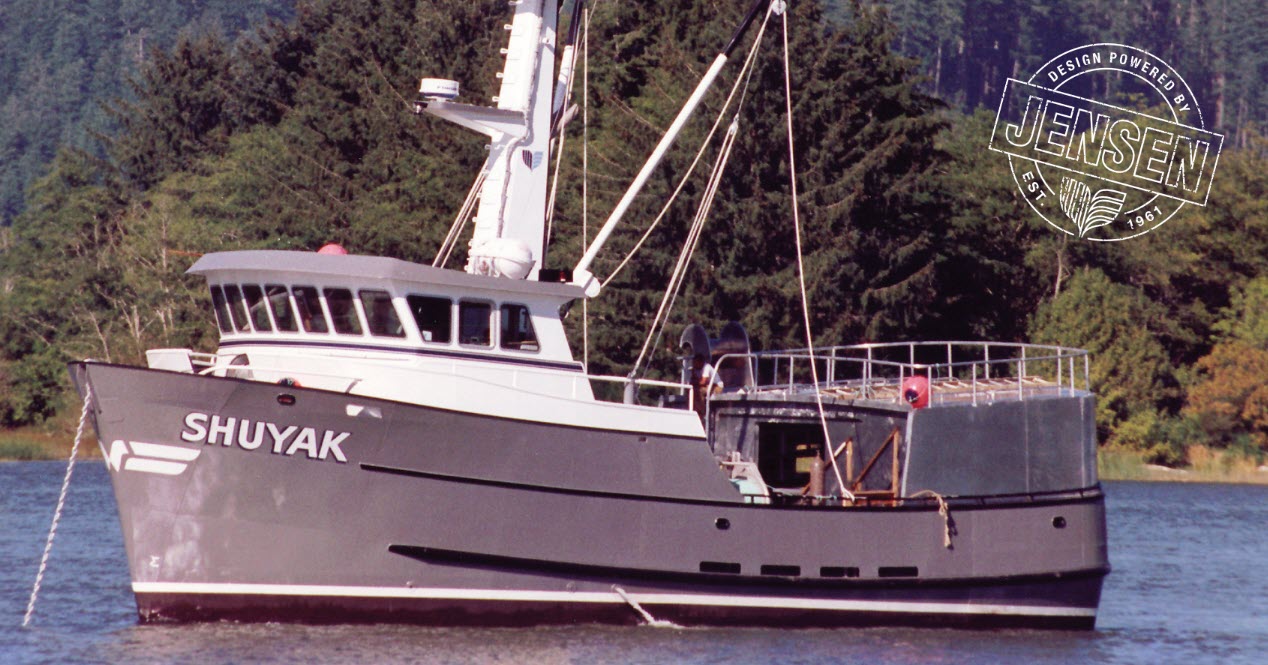

58′ x 23′ Fishing Vessel

FVC-05823

Length, Overall 58’-0” (17.67 m)
Beam 23’-0” (7.00 m)
Depth 10’-6” ( 3.20 m)
Draft, Full Load 12’-9” (3.9 m)
Main Engine Cummins, 425 BHP

---

Hold Capacity 2,437 ft3
Fuel Oil 8,700 Gal
Fisheries Seining, Longlining, Crabbing
Maximum Crew 8

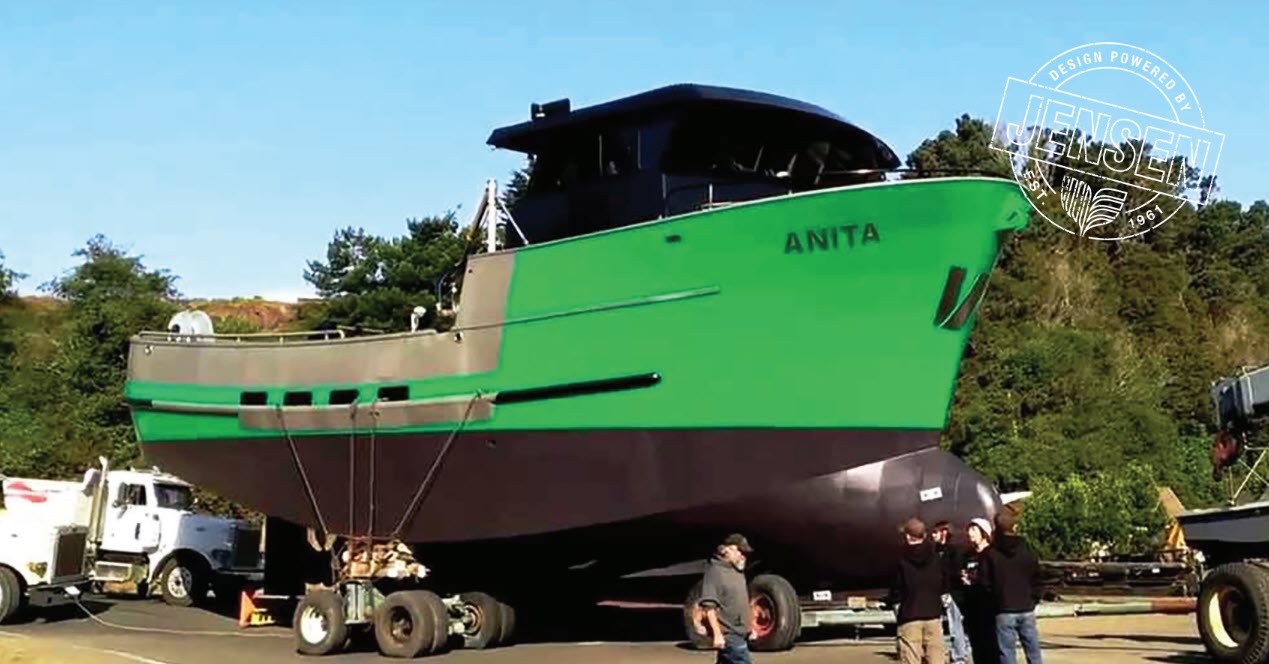

60′ x 28′ Crabber

FVC-06028

Length, Overall (Over Guards) 60’-3”
Length, Molded 59’-11”
Breadth, Molded 27’-6”

---

Breadth, Over Guards 28’-1”
Depth, Molded Amidships to Main Deck 10’-6”
Gross Tonnage, US Reg <200 GRT

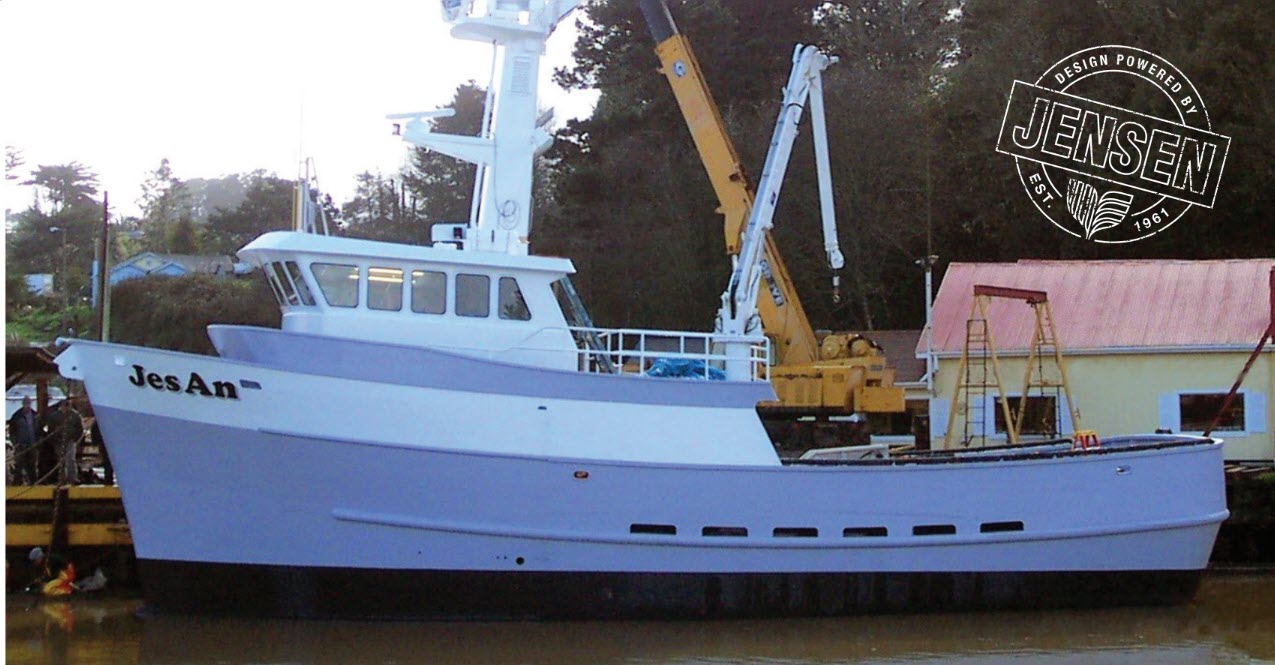

63′ x 25′ Crabber

FVC-06325

Length Overall 63’-0” (19.2 m)
Beam 24’-6” (7.5 m)
Depth 12’-0” (3.7 m)
Propulsion Single Screw Diesel, Fixed Pitch
Propulsion Power 640 HP

---

Hold Capacity: 3,828 ft3 (108.4 m³)
Fuel Capacity: 11,198 gal (42.4 m³)
Fresh Water: 1,922 gal (7.3 m³)
Berths: 9
Gross Tonnage: 123 US

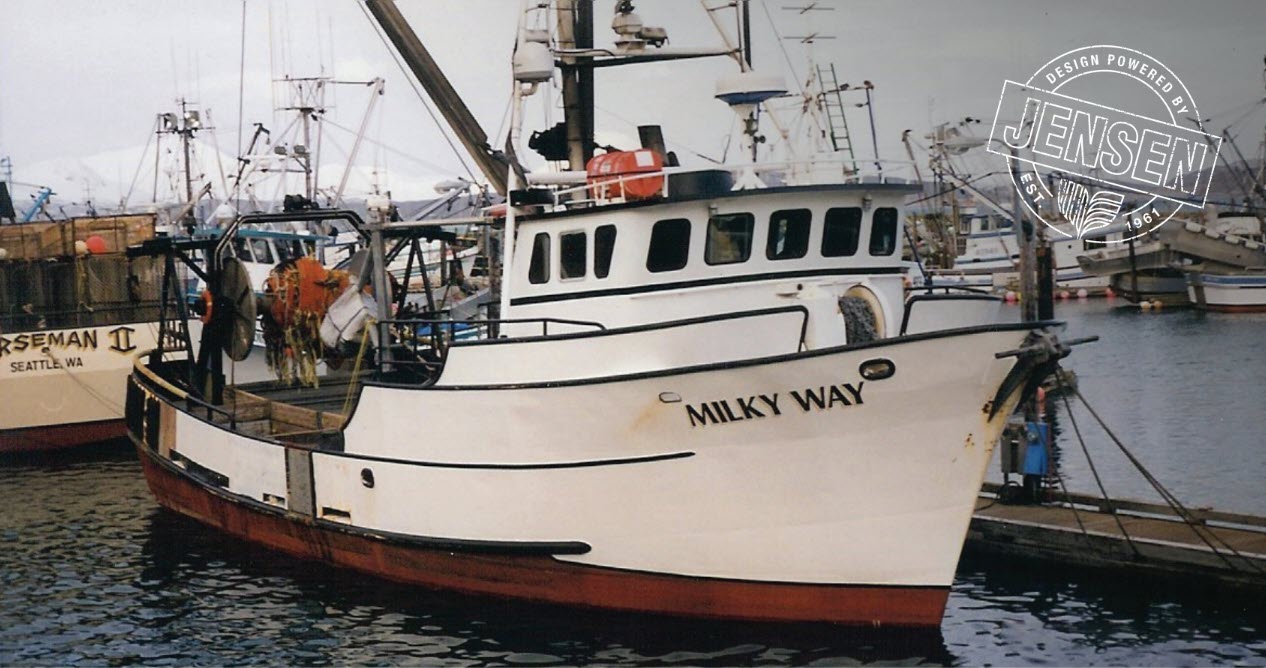

72′ x 21′ Crabber

FVC-07221

Length Overall 72’-0”
Beam 21’-0”
Depth 10’-3”

---

Hold Capacity 2,734 cu ft
Fuel Oil 6,350 gal
Fresh Water 1,150 gal

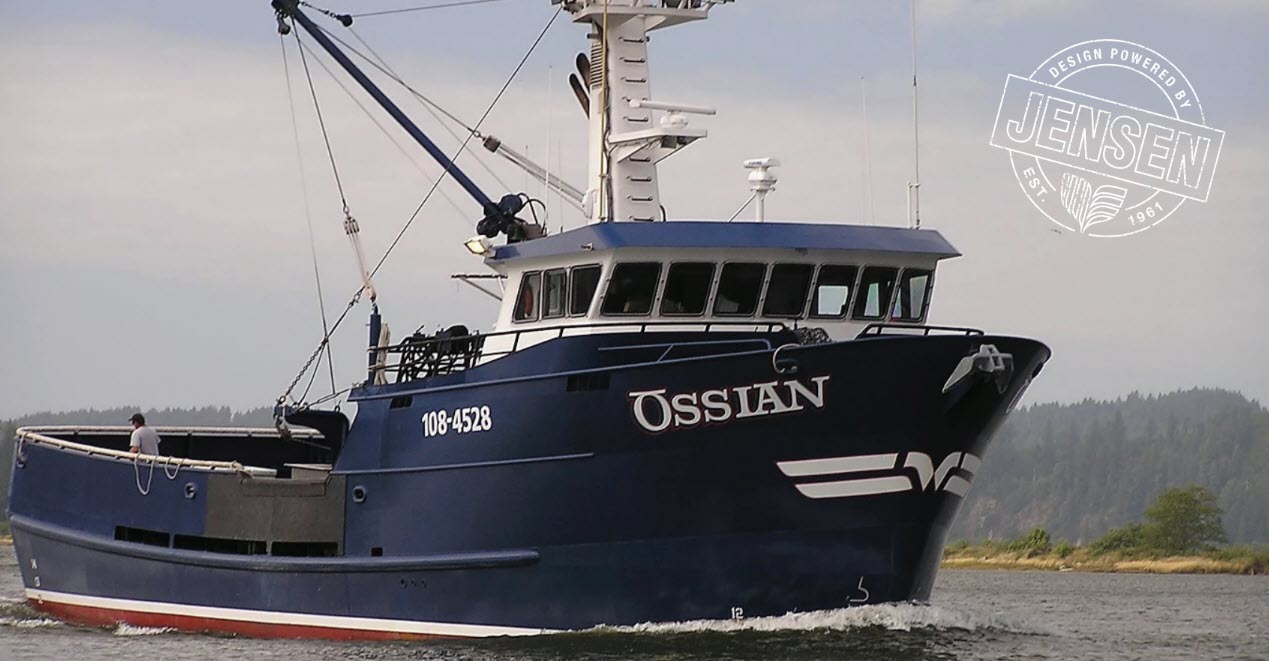

85′ x 26′ Crabber

FVC-08526

Length Overall 85’-0”
Breadth 26’-0”
Depth 13’-3”
Engine Horsepower 660 BHP
Gross Tonnage <200 ITC

---

Fuel Capacity 18,250 gal
Fresh Water Capacity 2,000 gal
RSW Capacity 2850 cu. ft.
Cargo Hold Volume 3350 cu. ft.

90′ x 30′ Crabber

FVC-09030

Length Overall: 90’-0” (27.4 m)
Breadth: 30’-0” (9.1 m)
Depth: 13’-3” (4.0 m)
Propulsion Single Screw Diesel, Fixed Pitch
Propulsion Power 850 HP (634 KW)

---

Hold Capacity: 6,394 ft3 (181.1 m³)
Fresh Water: 5,958 gal (22.6 m³)
Berths: 7
Gross Tonnage: 183 US, 220 ITC

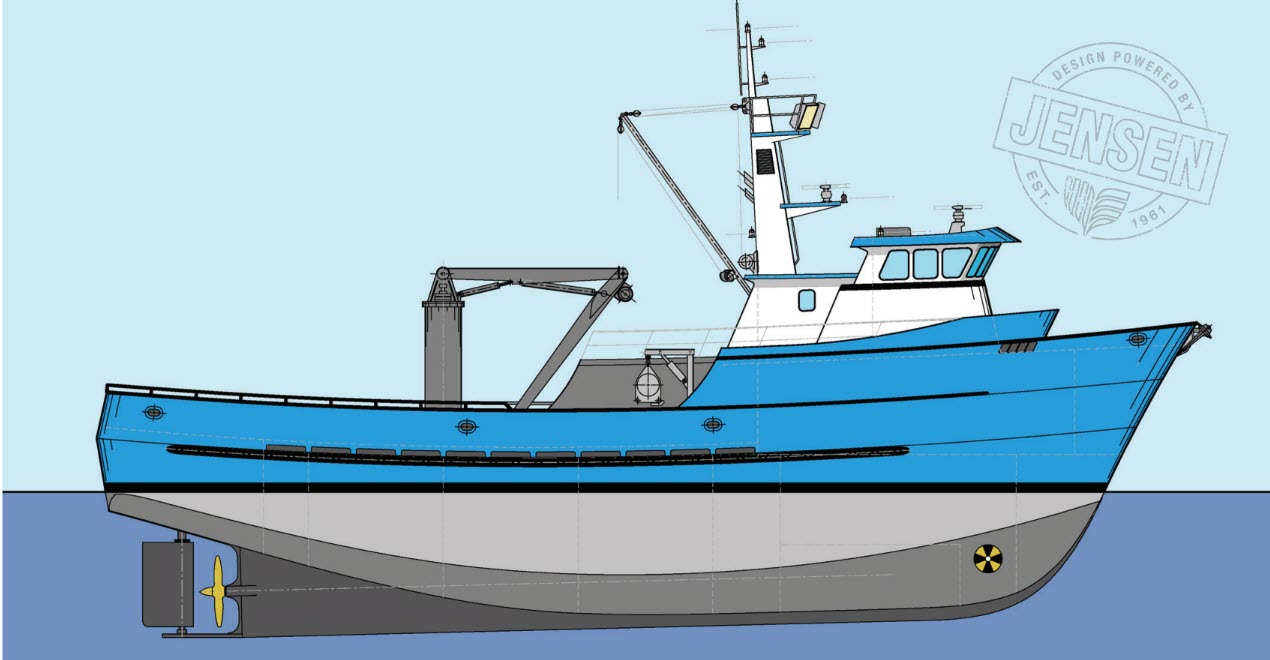

98′ x 32′ Crabber

FVC-09832

Length Overall: 98’-0” (29.9 m)
Breadth: 32’-0” (9.8 m)
Depth: 14’-0” (4.3 m)
Propulsion: Single Screw Diesel, Fixed Pitch
Propulsion Power: TBD

---

Hold Capacity: 7,300 ft3 (206.7 m³)
Fuel Capacity: 25,000 gal (94.6 m³)
Fresh Water: 4,500 gal (17.0 m³)
Berths: 7
Gross Tonnage: <220 ITC

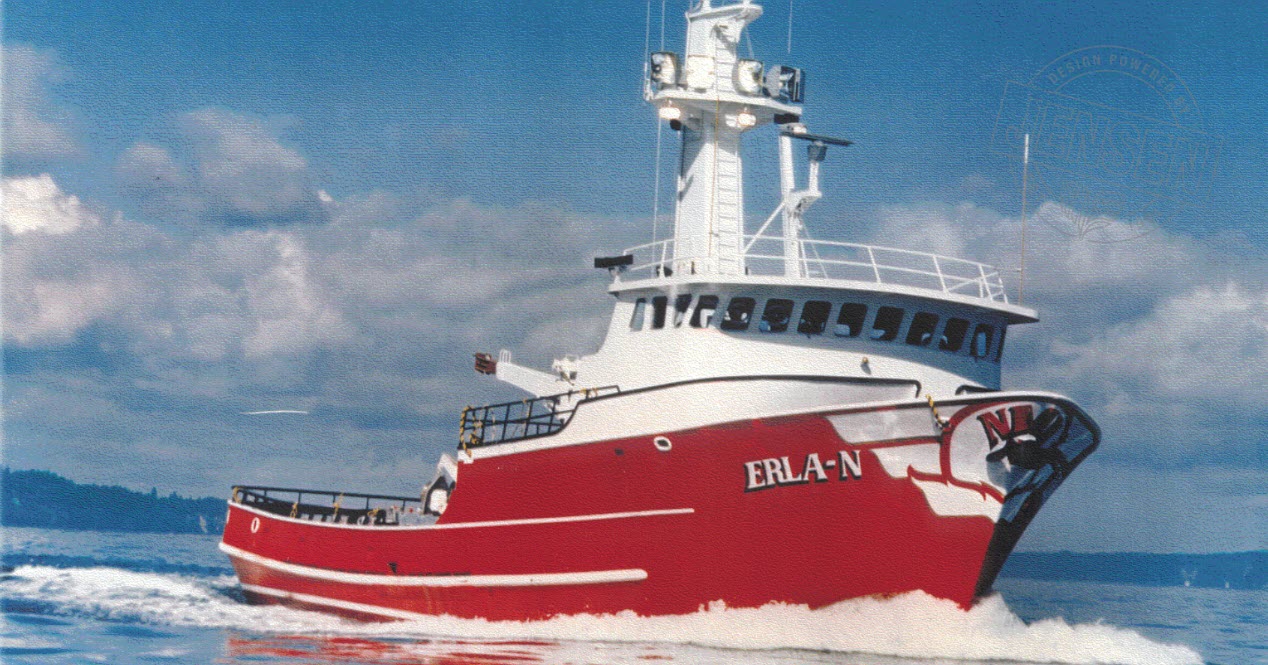

114′ x 38′ Crabber

FVC-11438

Coming Soon

Length Overall:
Beam:
Depth:
Propulsion Power:
Hold Capacity

---

117′ x 31′ Crabber

FVC-11731

Length Overall: 116’-8”
Length at Waterline: 105’-0”
Beam: 30’-6”
Depth: 15’-1 1/4”

---

Horsepower: 1,091
Gross Tonnage Under: 200 GT
S.W. Hold 8,950 cu. ft.
F. O. 45,115 gal

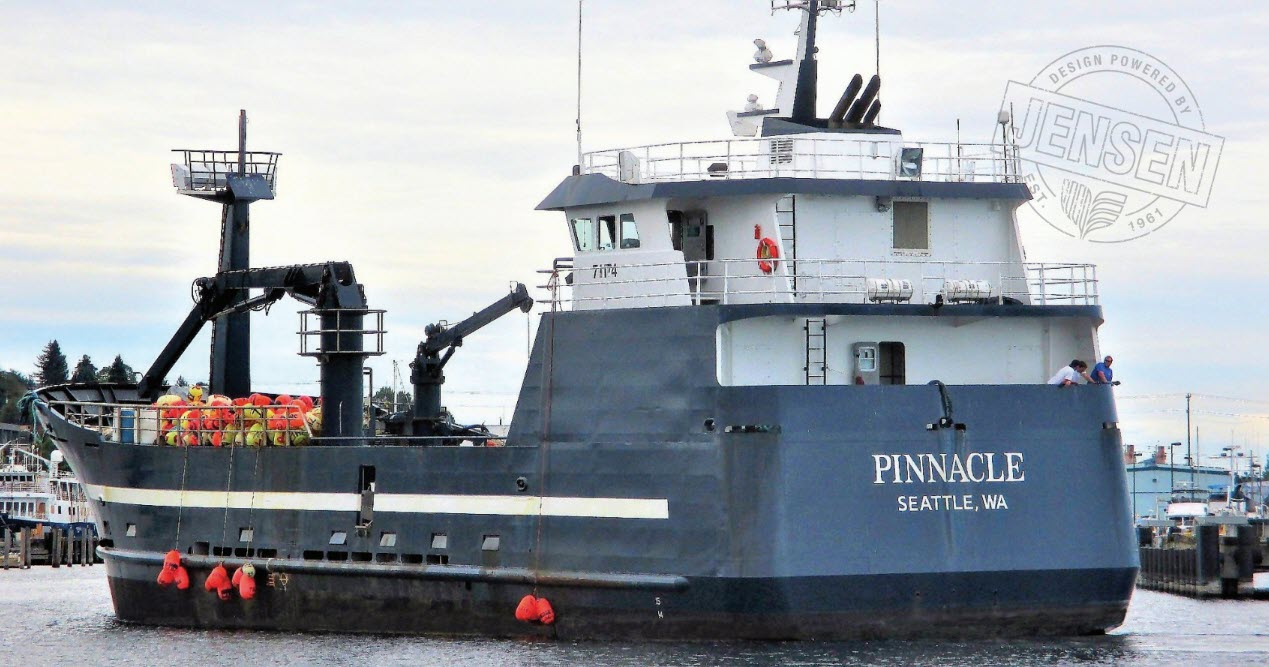

140′ x 38′ Crabber

FVC-14038

Length Overall: 140’-0” (42.7 m)
Breadth: 38’-0” (11.6 m)
Depth: 16’-0” (4.9 m)
Propulsion: Single Screw Diesel
Propulsion Power: 2,000 HP (1,491 KW)

---

Fuel Capacity: 75,982 gal (287.6 m³)
Fresh Water: 12,182 gal (46.1 m³)
Hold Volume: 14,896 ft3 (421.8 m³)
Berths: 15
Gross Tonnage: 199 US (636 ITC)

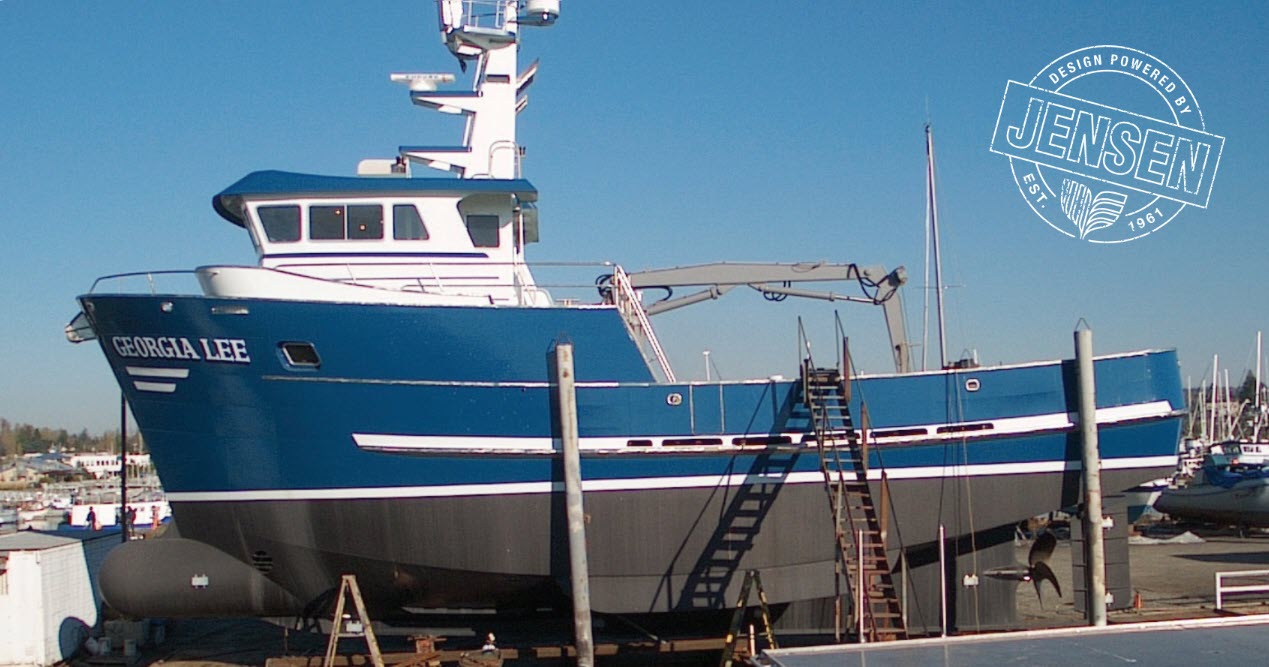

70′ x 23′ FV Combo

FVG-07023

Length Overall 70’-0” (21.3 m)
Breadth 23’-0” (7.0 m)
Depth 10’-6” (3.2 m)
Propulsion Single Screw, Fixed Pitch

---

Fuel Capacity 4,940 gal (18.7 m³)
Fresh Water 6,005 gal (22.7 m³)
Ballast 6,600 gal (25.0 m³)
Gross Tonnage 94

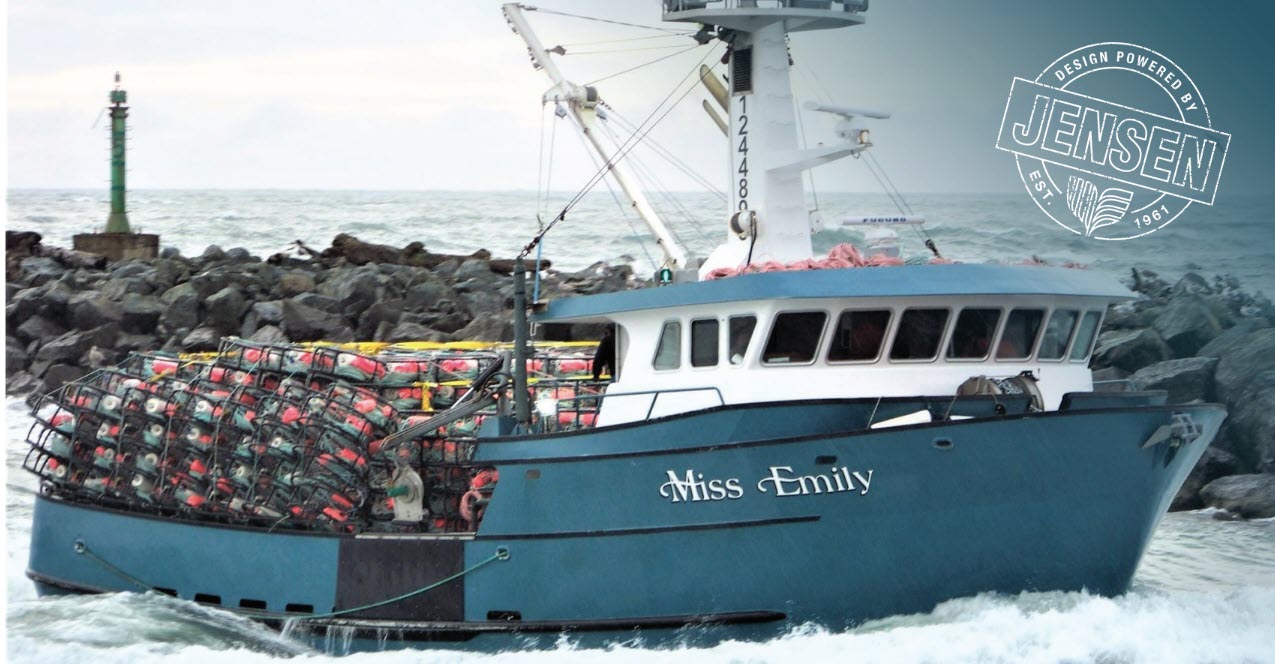

72′ x 28′ FV Combo

FVG-07228

Length 72’-0” (21.9 m)
Breadth 28’-0” (8.5 m)
Depth 13’-1½” (4.0 m)
Fish Hold 4,681 ft3 (133 m³)
Bait Hold Volume 540 ft³ (15.3 m³)

---

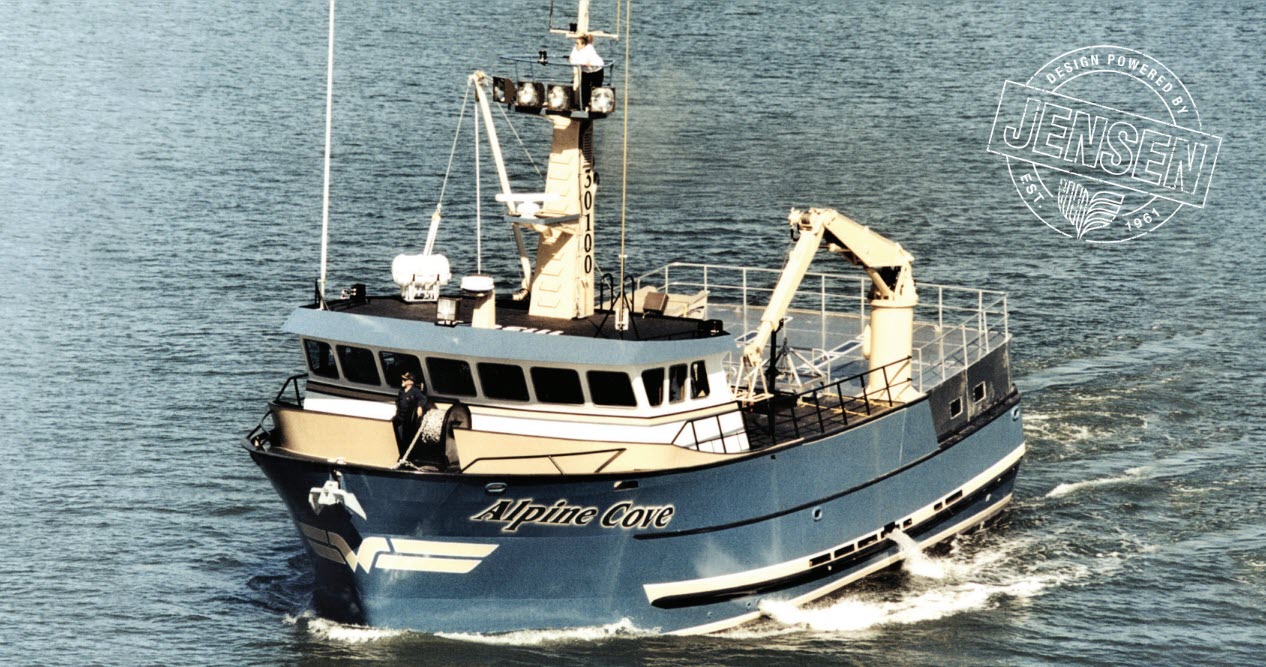

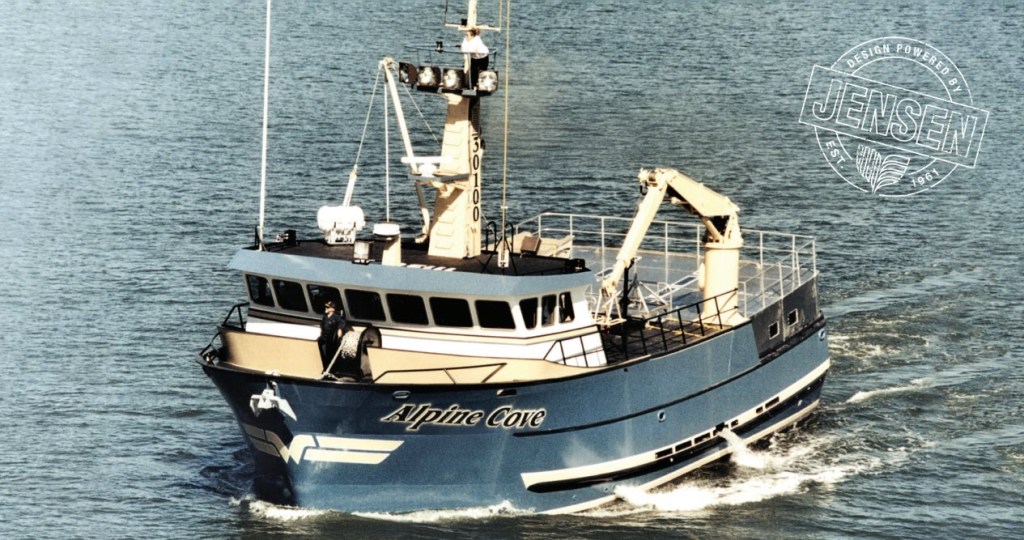

76′ x 30′ FV Combo

FVG-07630

Length: 76’-0” (23.2 m)
Breadth: 30-0” (9.1 m)
Depth: 13’-0” (4.0 m)
Hold Capacity: 5,118 ft³ (145 m³)
Berths: 7

---

Propulsion: Single Screw Diesel
Power 720 HP (537 KW)
Fuel Capacity: 21,009 gal (79.5 m³)
Fresh Water: 3,027 gal (11.5 m³)
Gross Tonnage: 168

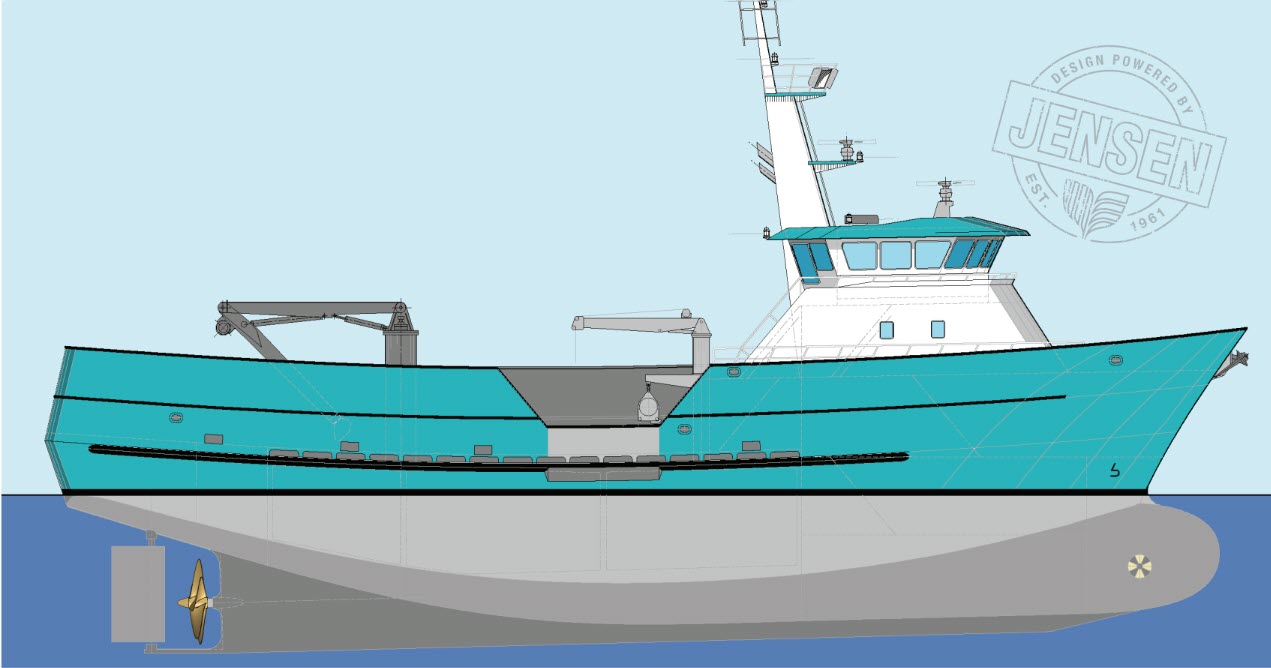

135′ x 44′ Combo

FVG-13544

Length 135’-0” (41.1 m)
Breadth 44’-0” (13.4 m)
Depth 18’-0” (5.5 m)
Draft 17’-9” (5.4 m)
Propulsion Single Screw Diesel, Fixed Pitch
Horsepower (total) 1600 (1193 KW)

---

Speed: 13 knots cruise
Fish Hold Volume: 19,500 ft3 (552 m3)
Fuel Capacity 80,000 gal (303 m3)
Fresh Water 8,300 gal (31.4 m3)
Berths 11
Gross Tonnage < 200 US

58′ x 18′ Fishing Seiner

FVS-05818

Length Overall 58’-0”
Length on Waterline 54’-0”
Beam 18’-1”
Depth 9’-7 ¼”

---

S.W. Hold 1,385 cubic feet
F.O. 4,000 gal
F.W. 1,250 ga

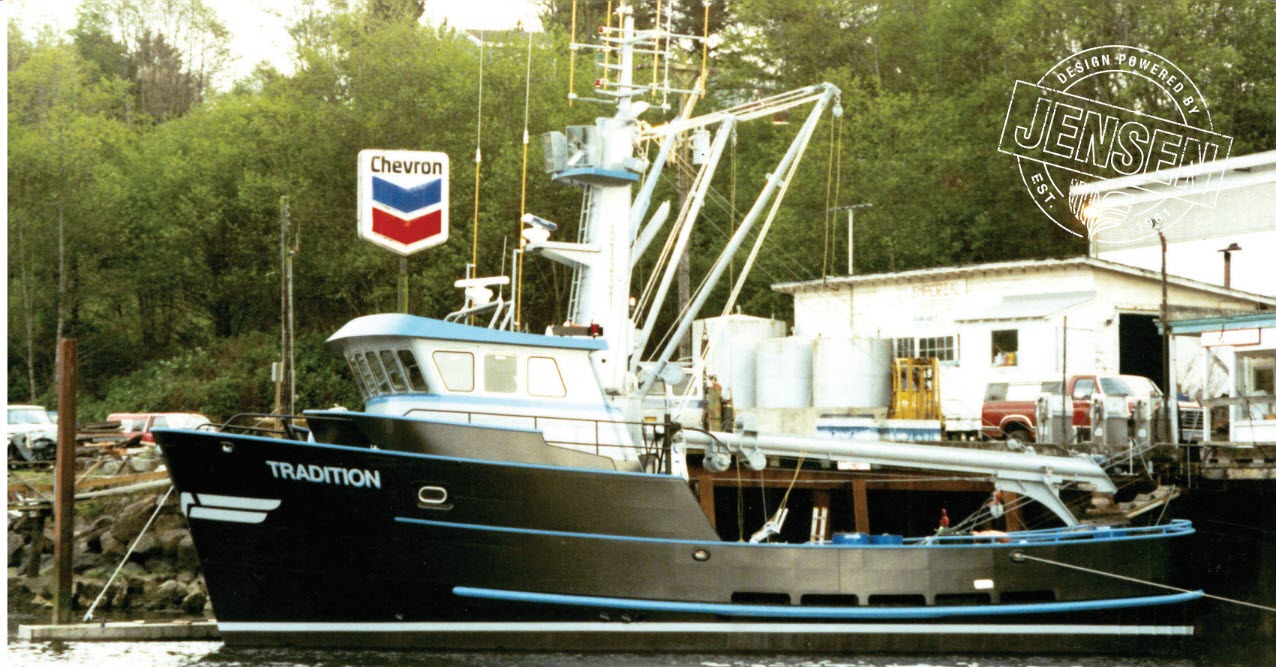

58′ x 19′ Fishing Seiner

FVS-05819

Length Overall 57’-9”
Length on Waterline 53’-1 ½”
Beam at Deck 19’-0”
Draft to Deck 10’-9”
Draft to DWL 8’-9”

---

Fuel Capacity (Approx) 3,081 gal
Fresh Water Capacity (Approx) 2,176 gal
Cargo Hold Volume 1,500 cubic feet
Shaft Horsepower 425 HP

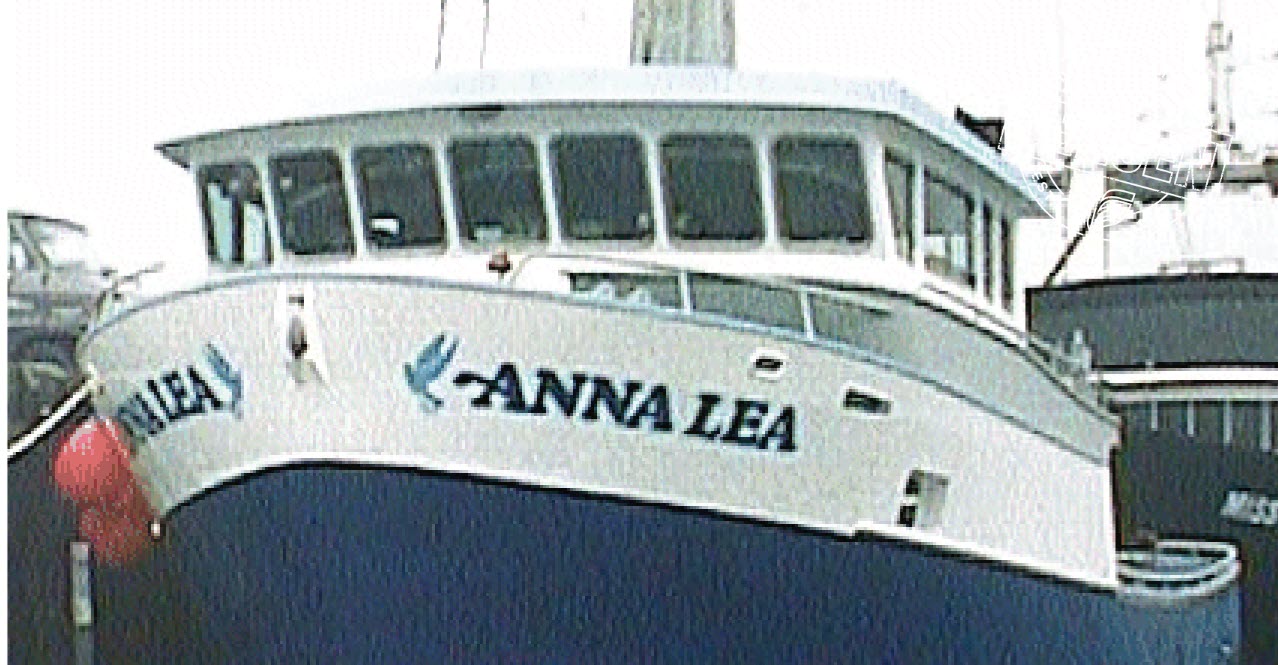

58′ x 23′ Fishing Seiner

FVS-05823

Length Overall: 57’-11”
Length on Waterline: 53’-4 ¾”
Beam at Deck: 23’-0”
Draft to Deck: 10’-6”
Draft to DWL: 10’-0”

---

Fuel Capacity (Approx) 7,994 gal
Fresh Water Capacity (Approx) 1,585 gal
Cargo Hold Volume 2,437 cubic feet
Shaft Horsepower 500 HP
Berthing 8

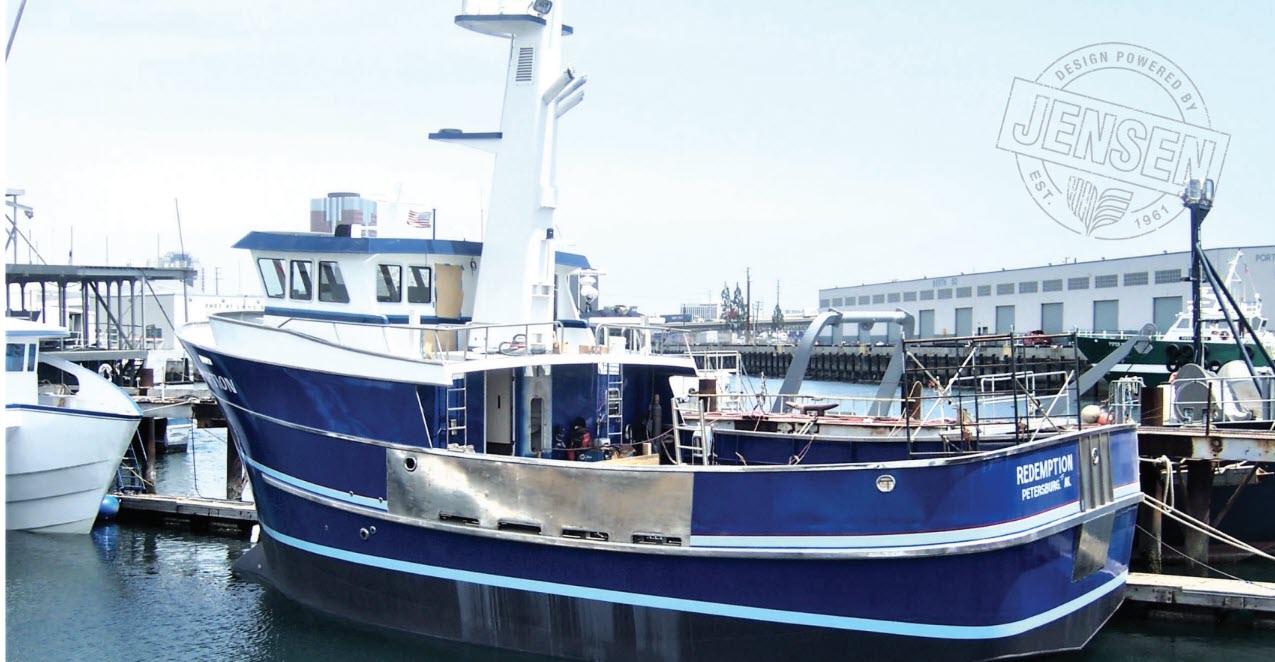

58′ x 24′ Fishing Seiner

FVS-05824

Length 57’-11” (17.7 m)
Breadth 24’-0” (7.3 m)
Depth 12’-0” (3.7 m)
Propulsion Single Screw, Fixed Pitch
Propulsion Power 600 HP (447 KW)

---

Hold Capacity 3,527 ft³ (99.9m³)
Fuel Capacity 9,392 gal (35.6 m³)
Fresh Water 1,892 gal (7.2 m³)
Berths 8
Gross Tonnage 114 US

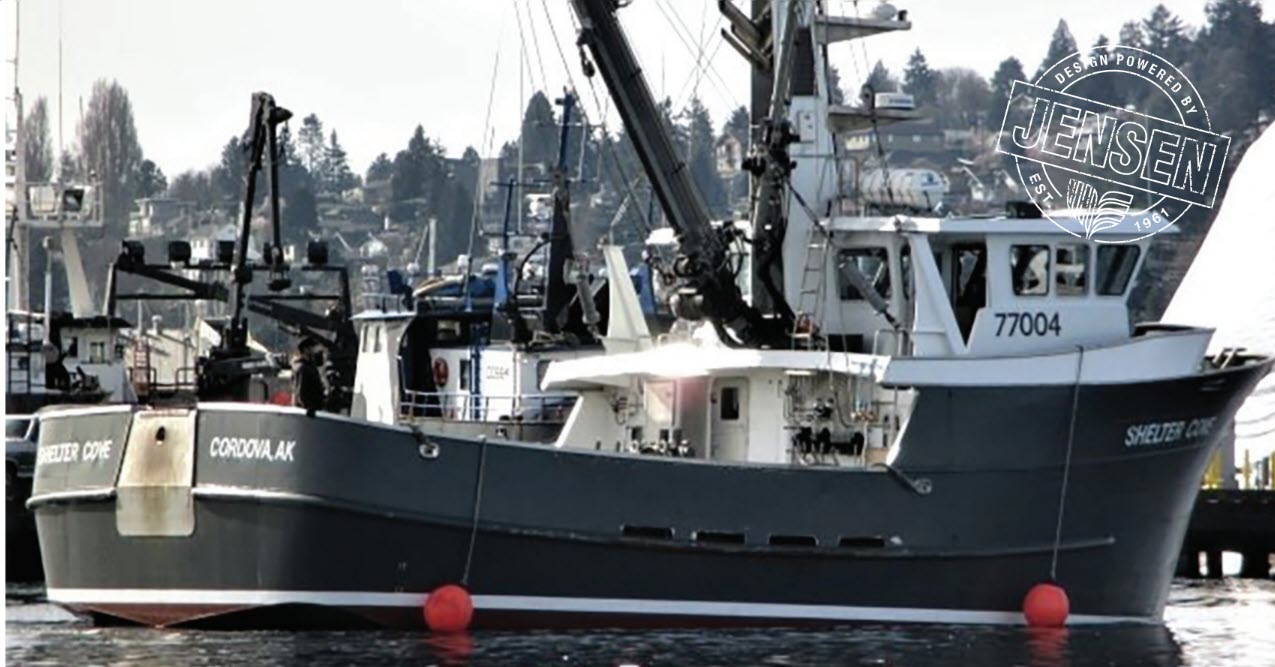

58′ x 25′ Fishing Seiner

FVS-05825

Length 57’-11” (17.7 m)
Breadth 25’-0” (7.6 m)
Depth 11’-3” (3.4 m)
Propulsion Single Screw, Fixed Pitch
Propulsion Power 563 HP (420 KW)

---

Hold Capacity 3,308 ft³ (93.7 m³)
Fuel Capacity 9,001 gal (34.1 m³)
Fresh Water 1,877 gal (7.1 m³)
Berths 8
Gross Tonnage 106 US
