Articulated Tug Barges

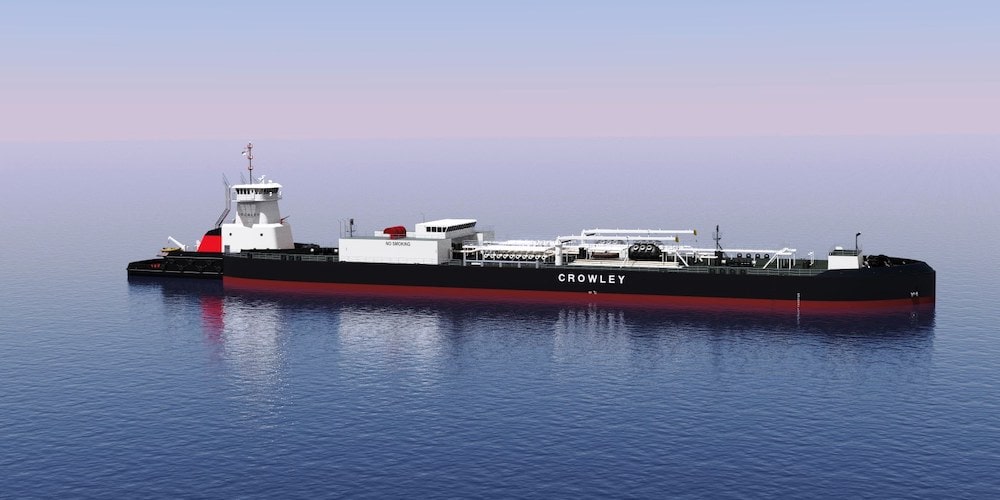

118′ x 47′ ATB Tug
AT-11847 B-00000
LENGTH: 118′ (35m)
BREADTH: 46′ 6″ (14m)
DEPTH: 21′ 10″ (6.4m)
ENGINES: 4,500 HP
FUEL CAPACITY: 158k gal (600k L)
261′ x 50′ 8K Barrel Barge Shallow Draft ATB
AT-07832 B-18350
TUG (Naniq)
Length: 77′-8″ (23.7m)
Beam: 32′-0″ (9.8m)
Depth: 8′-0″ (2.4m)
Draft: 4′-0″ (1.2m)
Fuel Oil: 12,390 gal (47 m³)
Fresh Water: 3,050 gal (12 m³)

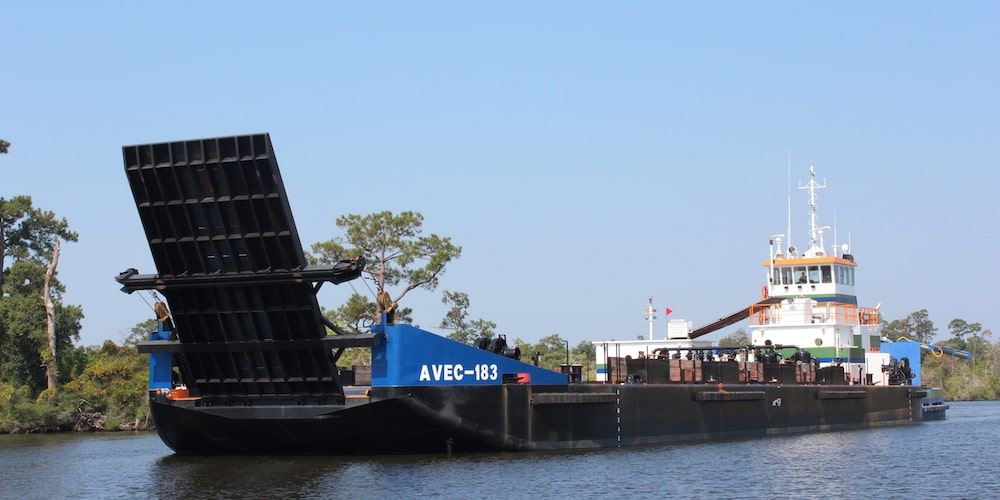

8K BARGE (AVEC-183)
Length: 183′-0″ (55.8m)
Breadth: 50′-0″ (15.2m)
Depth at Side: 9′-0″ (2.7m)
Cargo Fuel (Diesel): 8,000 BBL
(1,272 m³, max available)
Cargo Fuel (Gasoline): 3,000 BBL
(477 m³, max available)
286′ x 50′ 10K Barrel Barge Shallow Draft ATB
AT-07834 B-20850
TUG (Cavek)
Length: 77′-8″ (23.7m)
Beam: 32′-0″ (9.8m)
Depth: 8′-0″ (2.4m)
Draft: 4′-0″ (1.2m)
Fuel Oil: 12,390 gal (47 m³)
Fresh Water: 3,050 gal (12 m³)

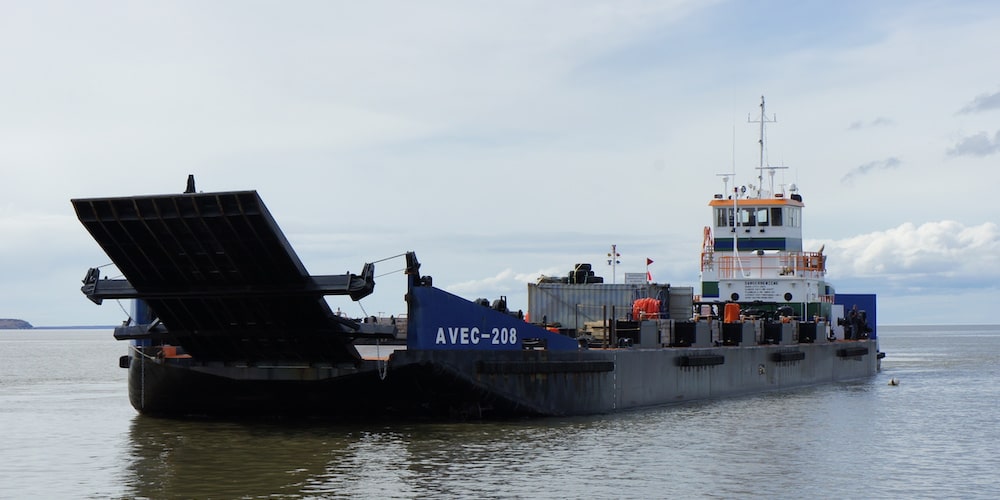

10K BARGE (AVEC-208)
Length: 208′-0″ (63.4m)
Breadth: 50′-0″ (15.2m)
Depth at Side: 9′-0″ (2.7m)
Cargo Fuel (Diesel): 10,000 BBL
(1,590 m³, max available)
Cargo Fuel (Gasoline): 4,000 BBL
(795 m³, max available)

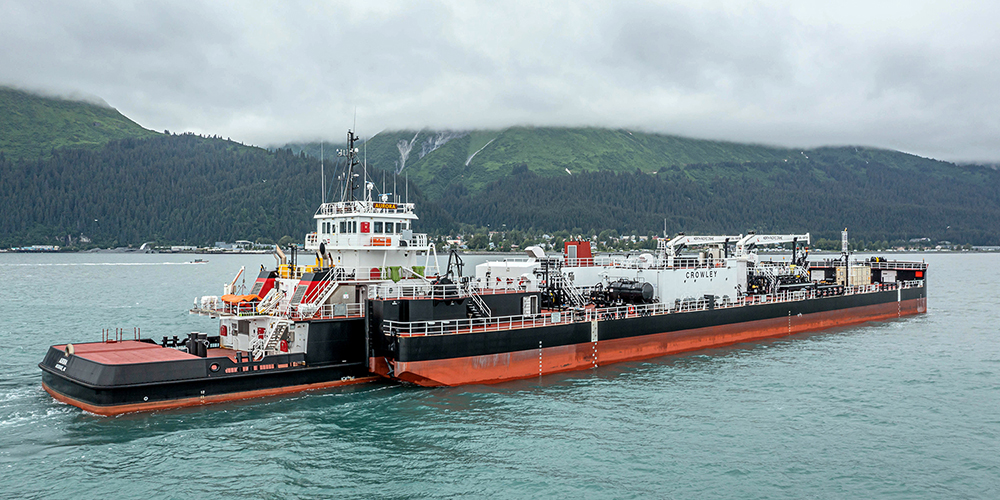

458′ x 88′ 55K Barrel Barge ATB
AT-10846 B-35088
TUG (Aurora)
Length: 108′-0″ (32.3m)
Beam: 46′-0″ (14.0m)
Depth: 16′-0″ (4.9m)
Draft, Yukon River: 9′-6″ (2.9m)
Draft, Bethel: 12′-0″ (3.7m)
Fuel Oil: 81,150 gal (307 m³)
Fresh Water: 7,135 gal (27 m³)
55K BARGE (Qamun)
Length: 350′-0″ (55.8m)
Breadth: 88′-0″ (15.2m)
Depth at Side: 23′-0″ (2.7m)
Cargo Oil: 56,680 BBL
(9,011 m³, 10 tanks)
Ballast: 1,290,000 gal (4.8 m³)

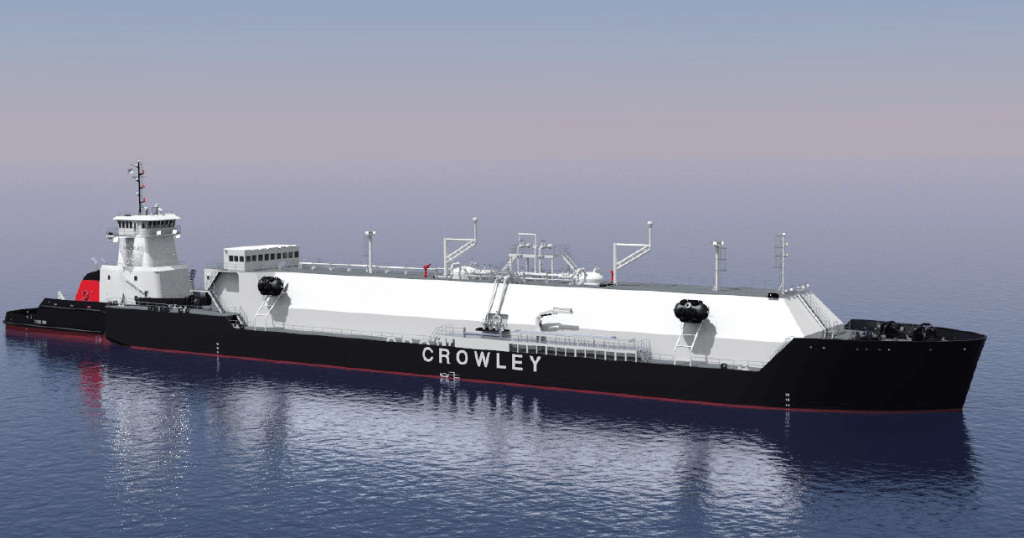

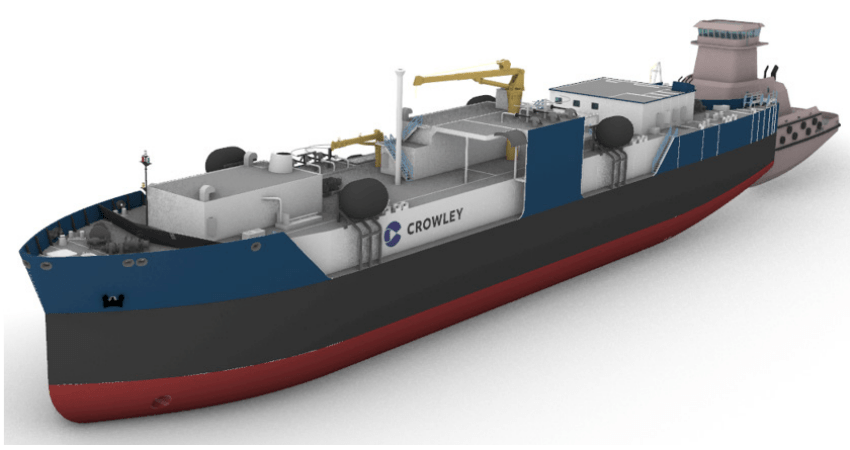

478’ x 62’ 6K LNG Bunker Barge ATB
AT-12842 B-35062
TUG
Length: 128’-0”
Beam: 42’-0”
Draft: 18′-6″
Fuel: 121,400 gal
Fresh Water: 11,290 gal
6K BARGE
Length: 350′-0″
Breadth: 62′-0″
Draft: 26′-1″
Cargo Fuel: 1,585,000 gal

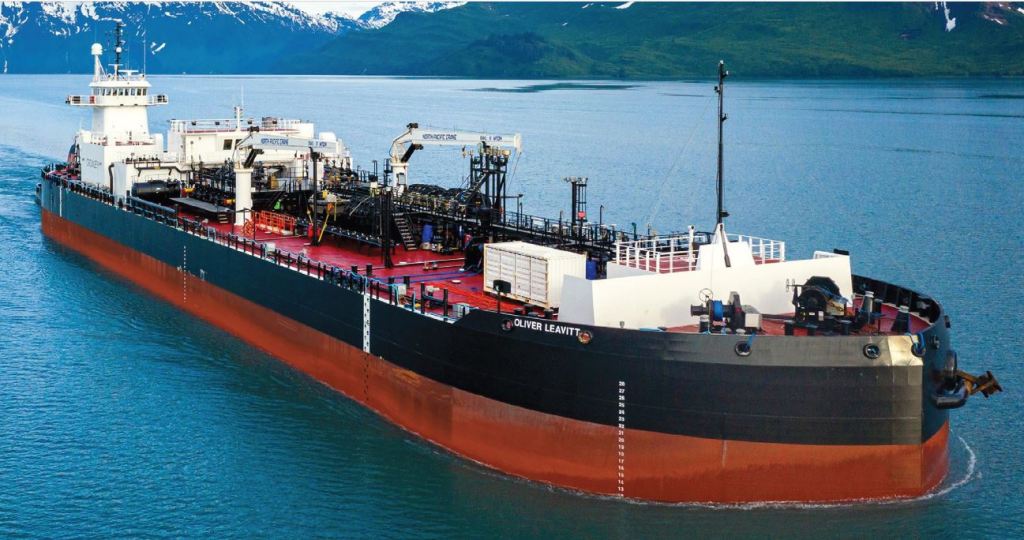

528′ x 85′ 100K Barrel Barge ATB
AT-12842 B-40085
TUG (Aveogan)
Length: 128′-0″
Beam: 42′-0″
Depth: 19′-2″
Maximum Draft: 18′-6″
Draft, Bethel: 12′-0″ (3.7m)
Bollard Pull: 97 short tons
Fuel: 122,200 gal
Fresh: 11,200 gal
100K BARGE (Oliver Leavitt)
Length: 400′-0″
Breadth: 85′-0″
Depth at Side: 32′-0″
Maximum Draft: 22′-0″
Deadweight Ton: 14,600LT
Fuel: 17,600 gal
Ballast: 1,667,000 gal
Cargo: 101,000 BBL
